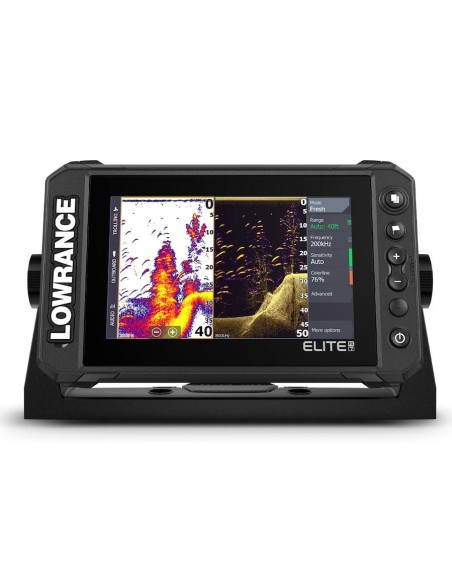

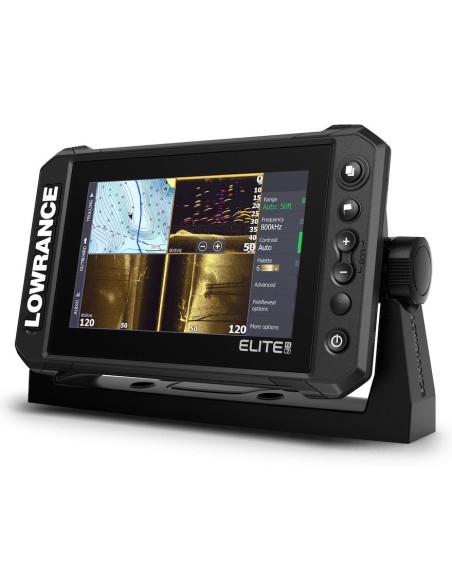

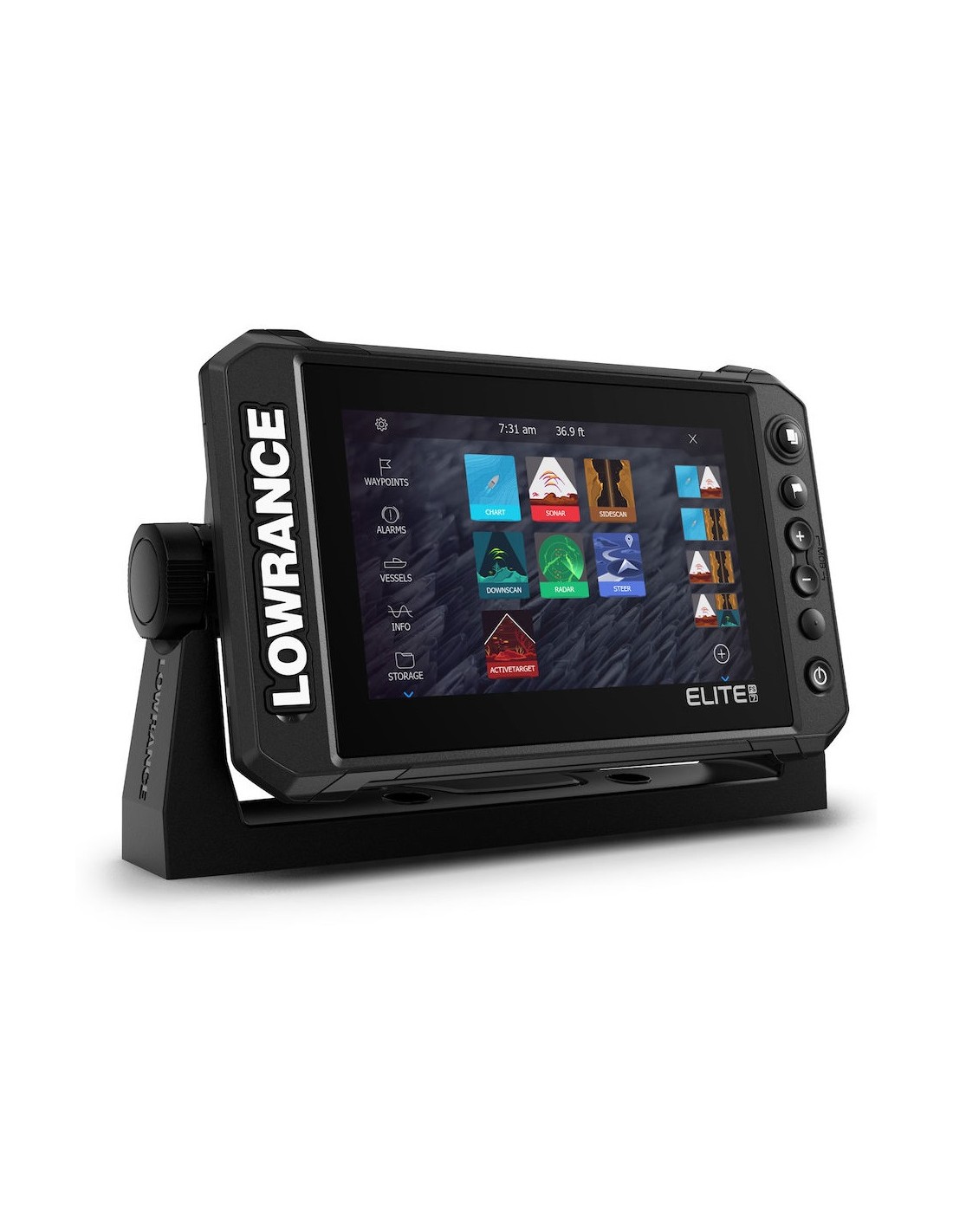

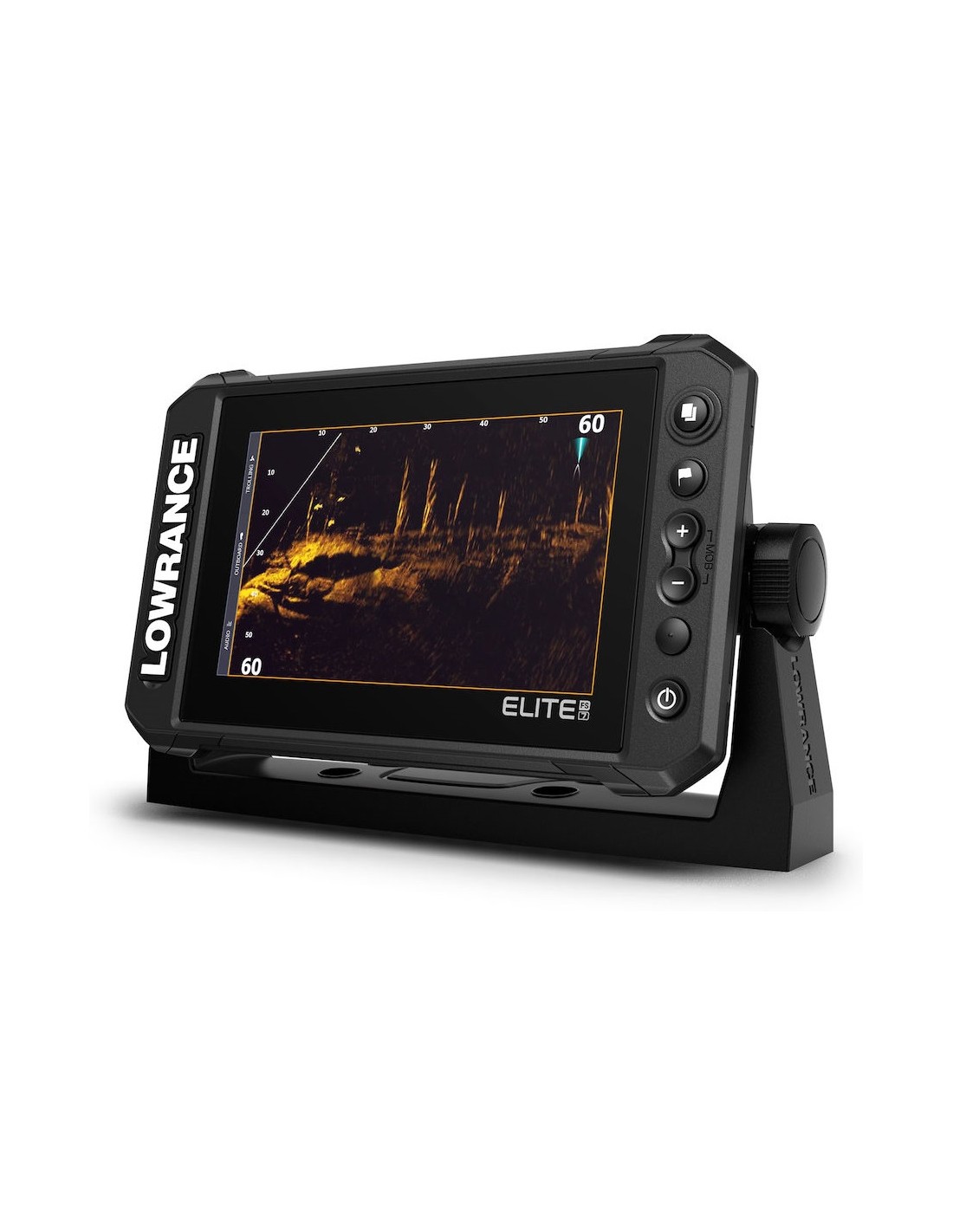

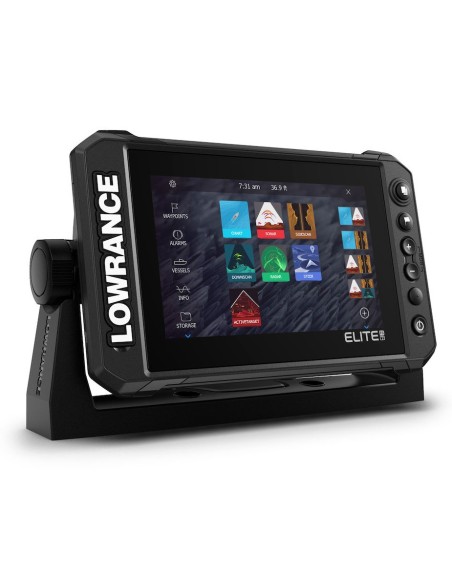

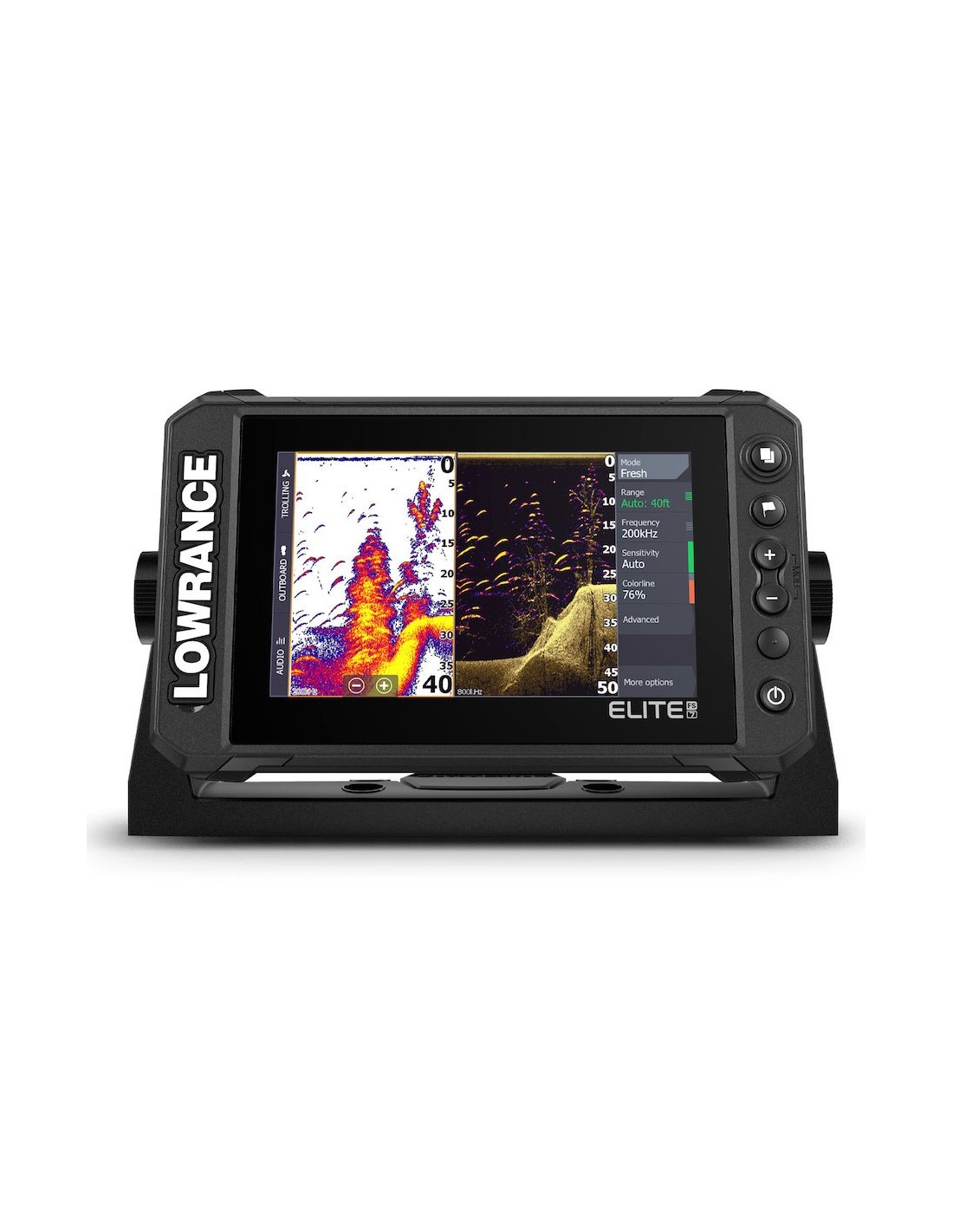

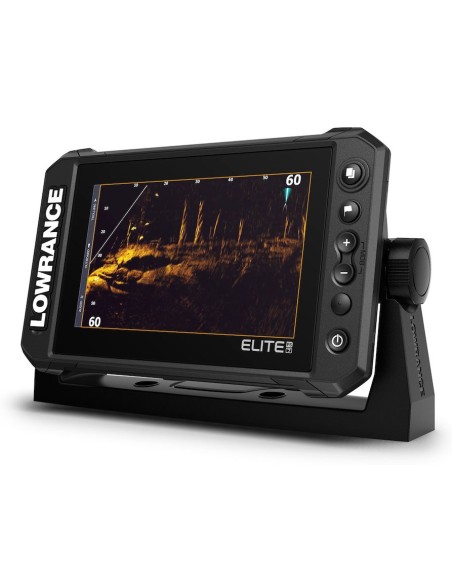

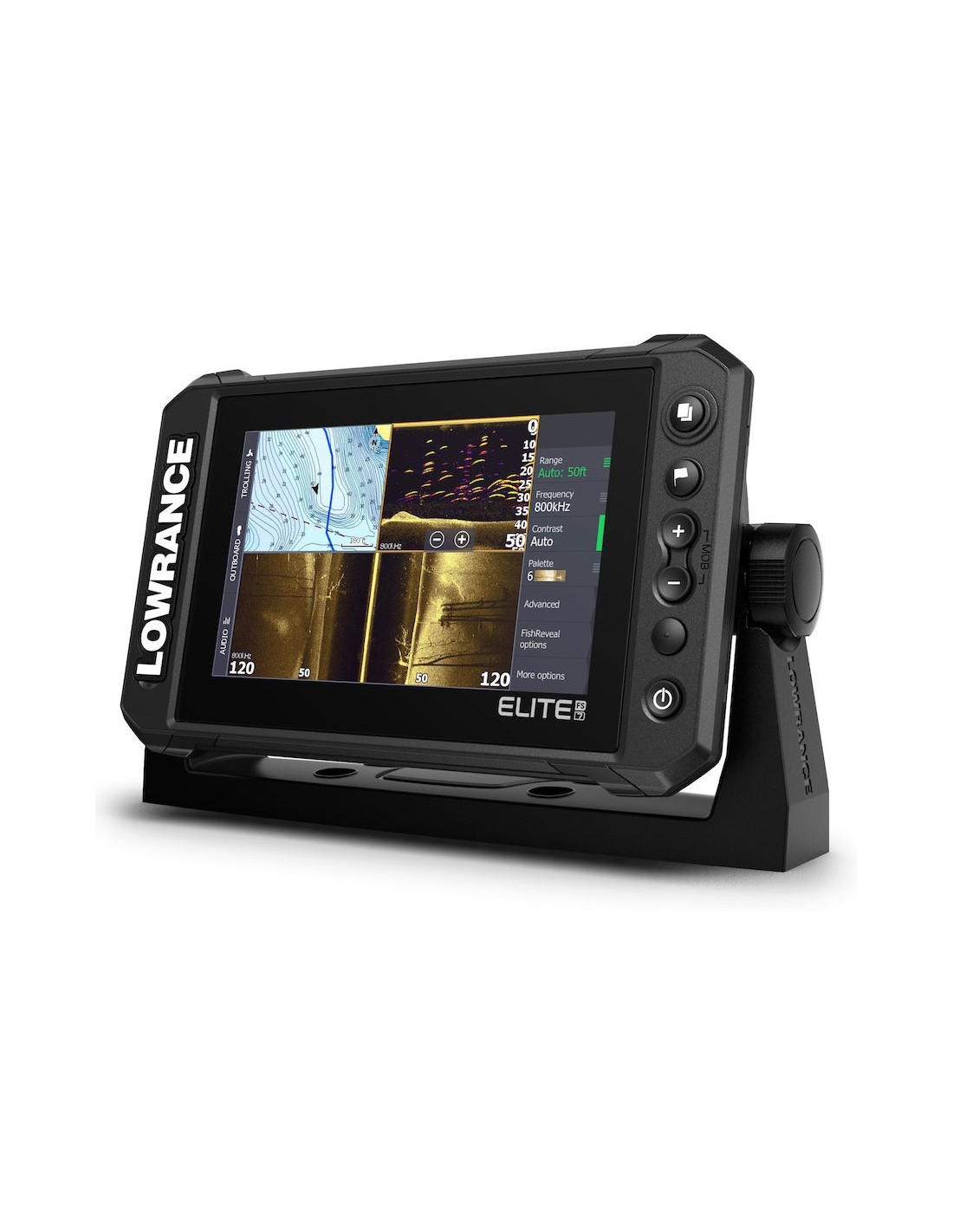

Lowrance Elite 7FS eco / GPS TouchScreen with stern transducer HDI eco standard frequency 83 and 200 khz and DownScan Imaging
Delivered in 1-2 days
In-store price €1,135.00
Online price €964.75
VAT excluded: 790.78€
-15%
Main functions
Ready for ActiveTarget ™ Live sonar
Ready for Active Imaging 3-in-1
FishReveal ™
Includes a worldwide basemap, plus a wide range of chart options, including C-MAP, Navionics® and more
C-MAP® Easy Routing, Navionics® Autorouting functionality
C-MAP Genesis Live on-screen cartography
High resolution multi-touch touchscreen
Integrated wireless, NMEA 2000® and Ethernet connectivity
Full touchscreen control of Power-Pole® anchors and Ghost® electric motor
SPECIFICHE TECNICHE
- Memoria scheda SD 1 micro SD card up to 32GB
- Porte Ethernet 1 x 100Mbit
- Peso 1.90 lbs (0.90 kg)
- Frequenza aggiornamento 10 Hz
- GPS 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
- Vibrazioni urti 100,000 cycles of 20 G
- Sicurezza bussola 12" (300mm)
- Tensione di alimentazione 12v DC (10.8-17VDC)
- Canali del ricevitore GPS 16
- Connettività NMEA 2000 1x Micro-C
- Consumo energetico massimo 2.0A @ 13VDC with backlight on full
- Consumo energetico tipico 2.0A @ 13VDC with backlight on full
- Consumo energetico minimo 2.0A @ 13VDC with backlight on full
- Precisione della posizione 20m RMS
- Waypoint, rotte, tracce 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
- Valore nominale del fusibile consigliato 3A
- Intervallo temperatura di stoccaggio 4°F to 140°F (-20°C to 60°C )
- Compatibilità radar 4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)
- Intervallo di temperature operative 5°F to 131°F (-15°C to 55°C )
- Angoli visuale 50° top60°bottom70° left/right
- Umidità 60°C, 95% relative humidity (RH) for 18 hours
- Risoluzione del display 800x480
- AIS AIS Chart overlay. Target vessel details.
- Carte supportate C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
- Cartografia inclusa C-MAP ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models)
- Correzione DGPSWAASMSASEGNOSGLONASS
- Tipo di montaggio Gimbal Bracket or Dash Flush Mount
- Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Compatibilità sonar Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target
- Connettività Wi-Fi elemento Internal 802.11b/g/n
- Livello d'impermeabilità IPX7 with card door closed
- Interfaccia Multi-Touch TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power
- Memoria interna None
- Connettività PC None
