Hatch stay
Delivered in 1-2 days
In-store price €24.61
Online price €22.15
VAT excluded: 18.15€
-10%

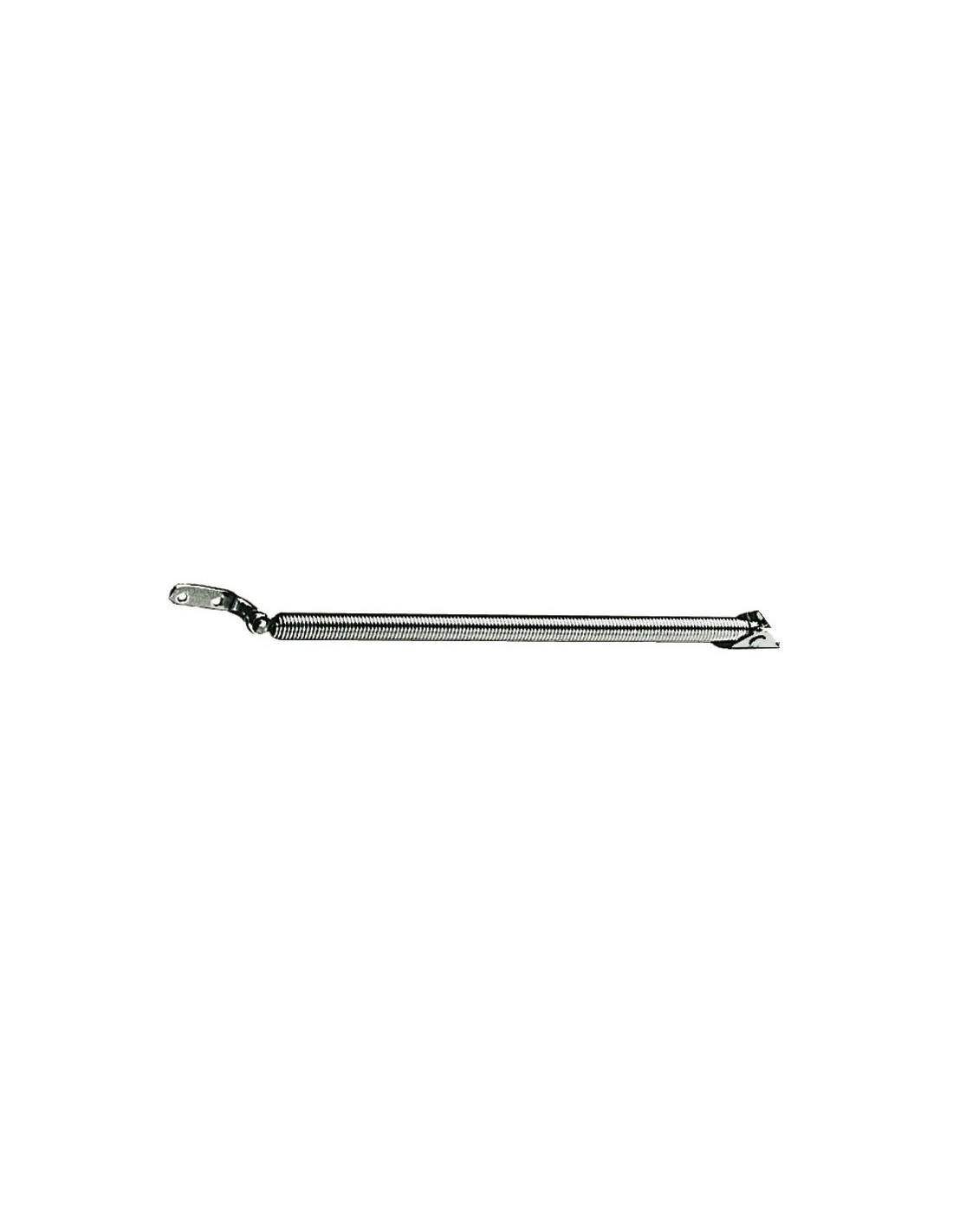

Made of stainless steel, fitted with hatch opening spring, includes fork U-bolt and L shape plate. Equipped with safety stainless steel cable to prevent the springs from stretching

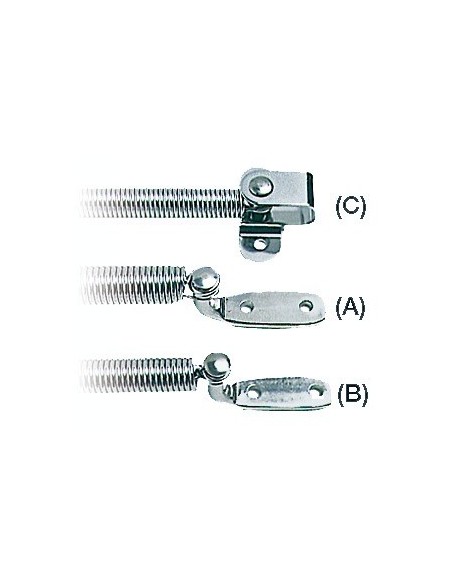

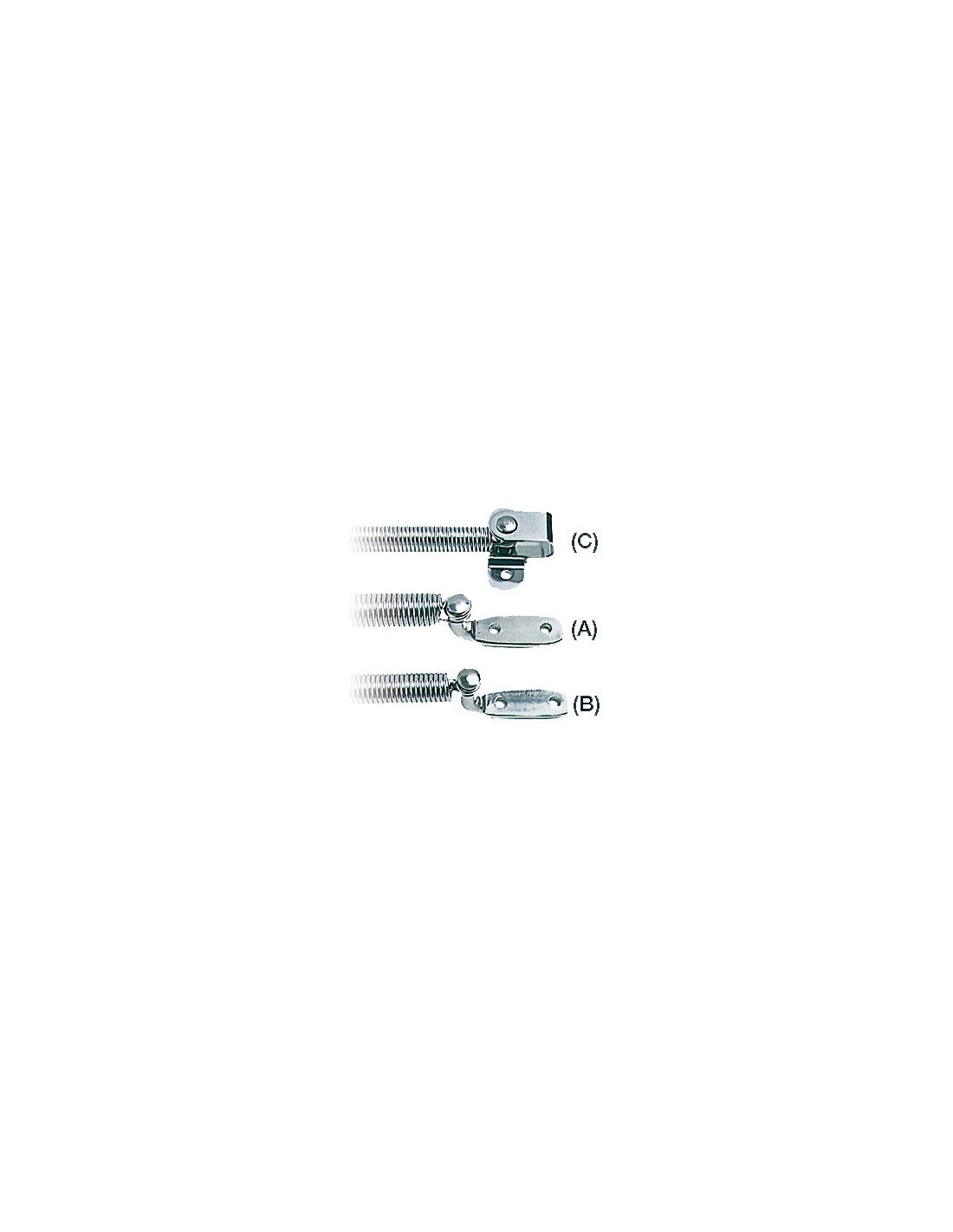

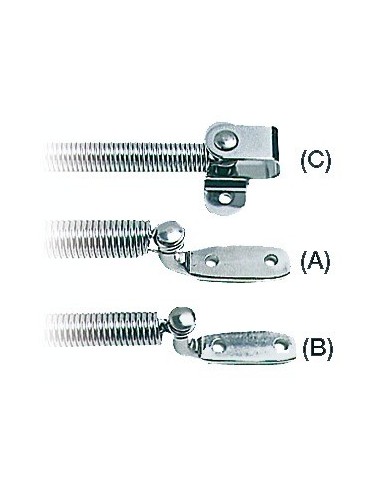

| MODEL | Terminal (1) | Terminal (2) | Lenght | Ø Spring | L | M | N | O | P |
|---|---|---|---|---|---|---|---|---|---|
| 1 | A | D | 220 mm | 10,6 mm | 235 mm | 40 mm | 30 mm | 4,2 mm | 18 mm |
| 2 | A | D | 470 mm | 10,6 mm | 425 mm | 40 mm | 30 mm | 4,2 mm | 18 mm |
| 3 | B | D | 260 mm | 14 mm | 275 mm | 45 mm | 35 mm | 4,7 mm | 23 mm |
| 4 | C | D | 220 mm | 14,20 mm | 275 mm | 24 mm | 36 mm | 5,1 mm | 42 mm |
