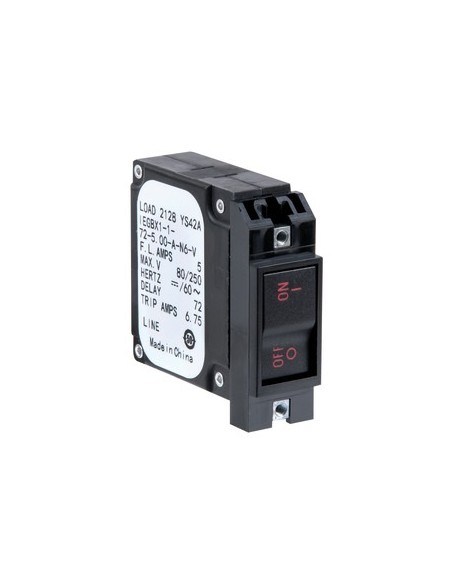

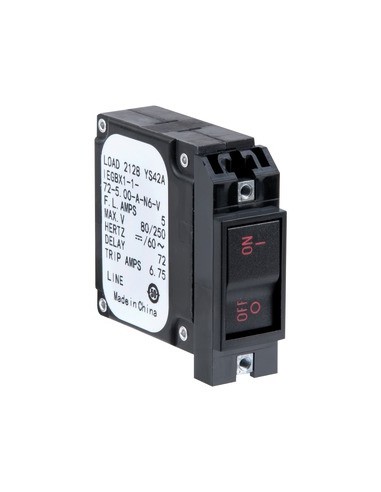

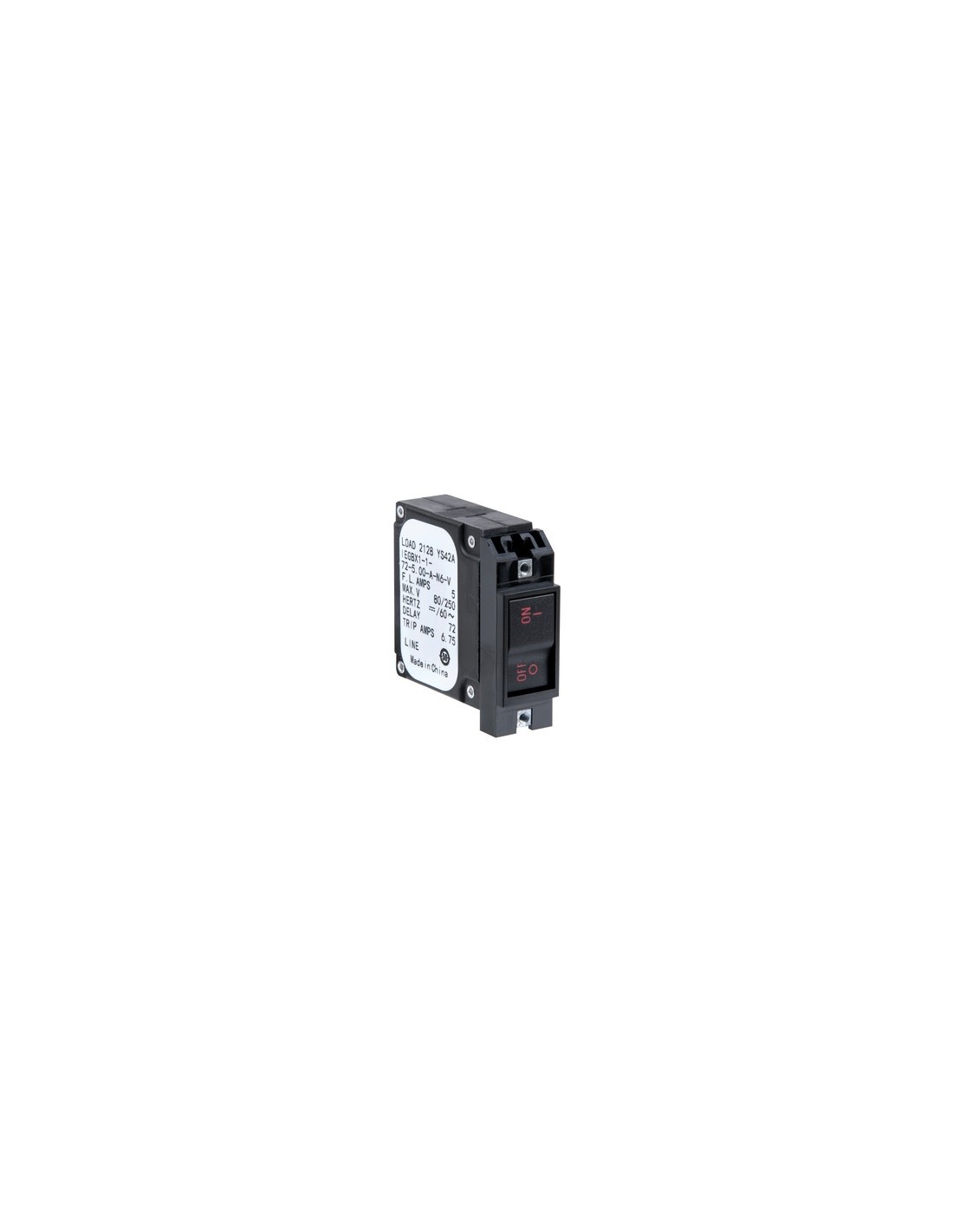

AIRPAX tumbler switch, magneto/hydraulic model

AIRPAX tumbler switch, magneto/hydraulic model with automatic rechargeable fuse.

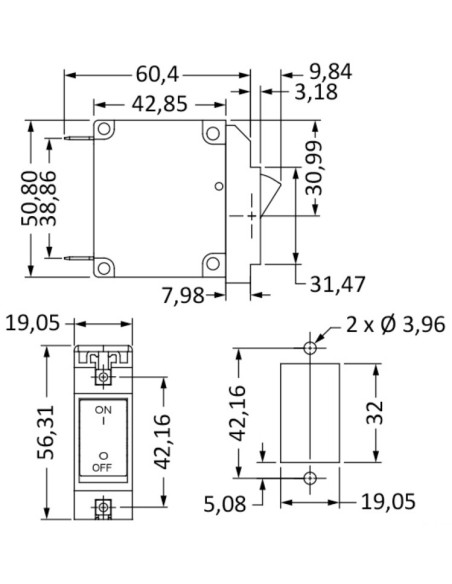

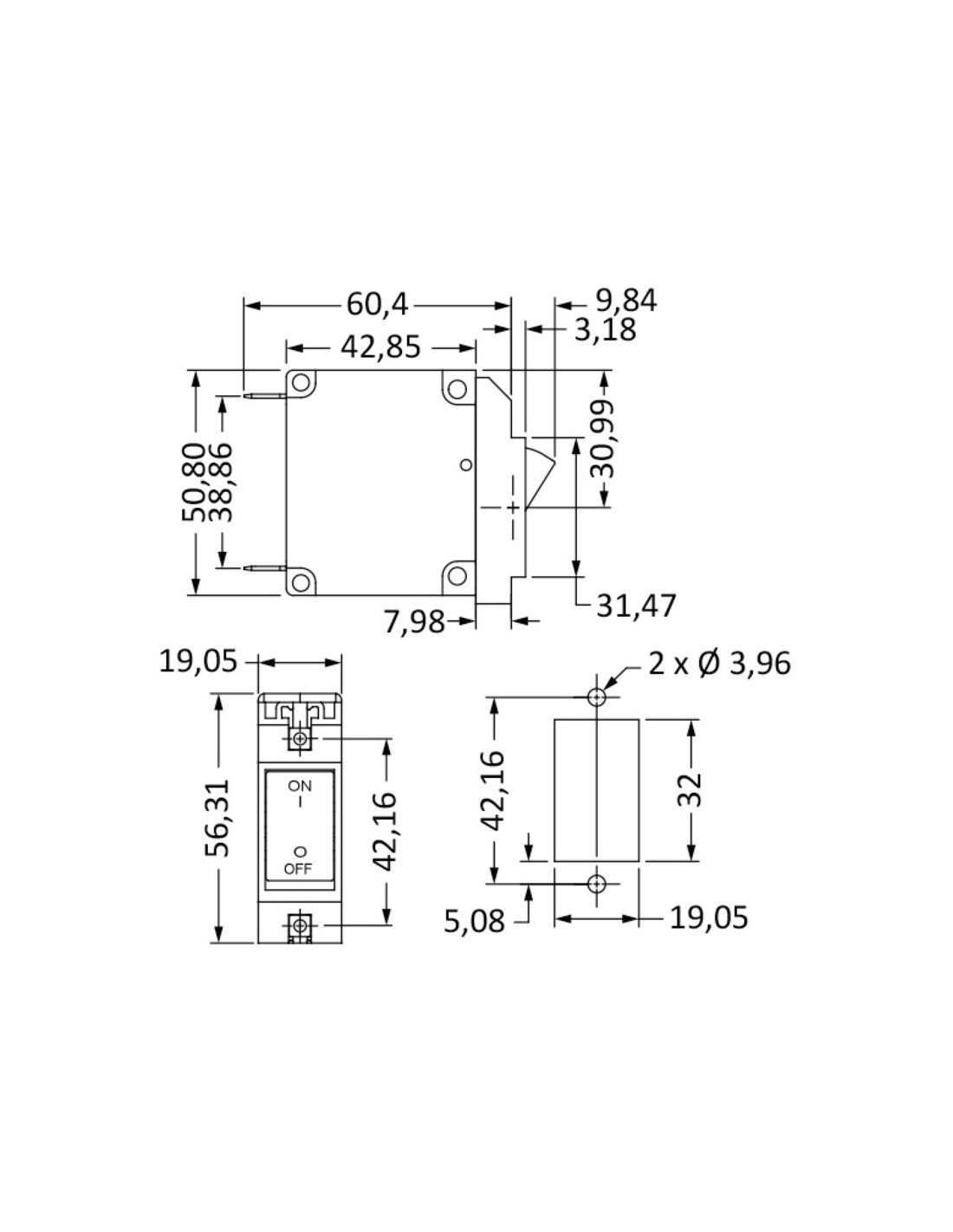

Designed on purpose for the marine environment. In case of heavy overload (i.e.: short circuits), the swith disconnect instantaneously while for overloads up to 50% it maintains the contact for few seconds so, if this is due to an fortuitous event, it has time to return within the limits without interrupting the power supply. In case of short circuit, the switch cannot be reactivated until the problem is solved. - Toggle lever switch - Swinging lever actuator, IAG series, universal 12/220 V, front recess in the panel, 16-mm Ø. - Flat flush toggle switch for vertical mounting - Flat actuator with flush swinging toggle, coloured light indicator for OFF position. IEGB series, universal 12/220 V, front recess in the panel 32x19 mm.

Horizontal mounting

4 type of Amp. choise.
